ON SPECIAL OFFER UNTIL 19th NOVEMBER OR UNTIL STOCKS LAST

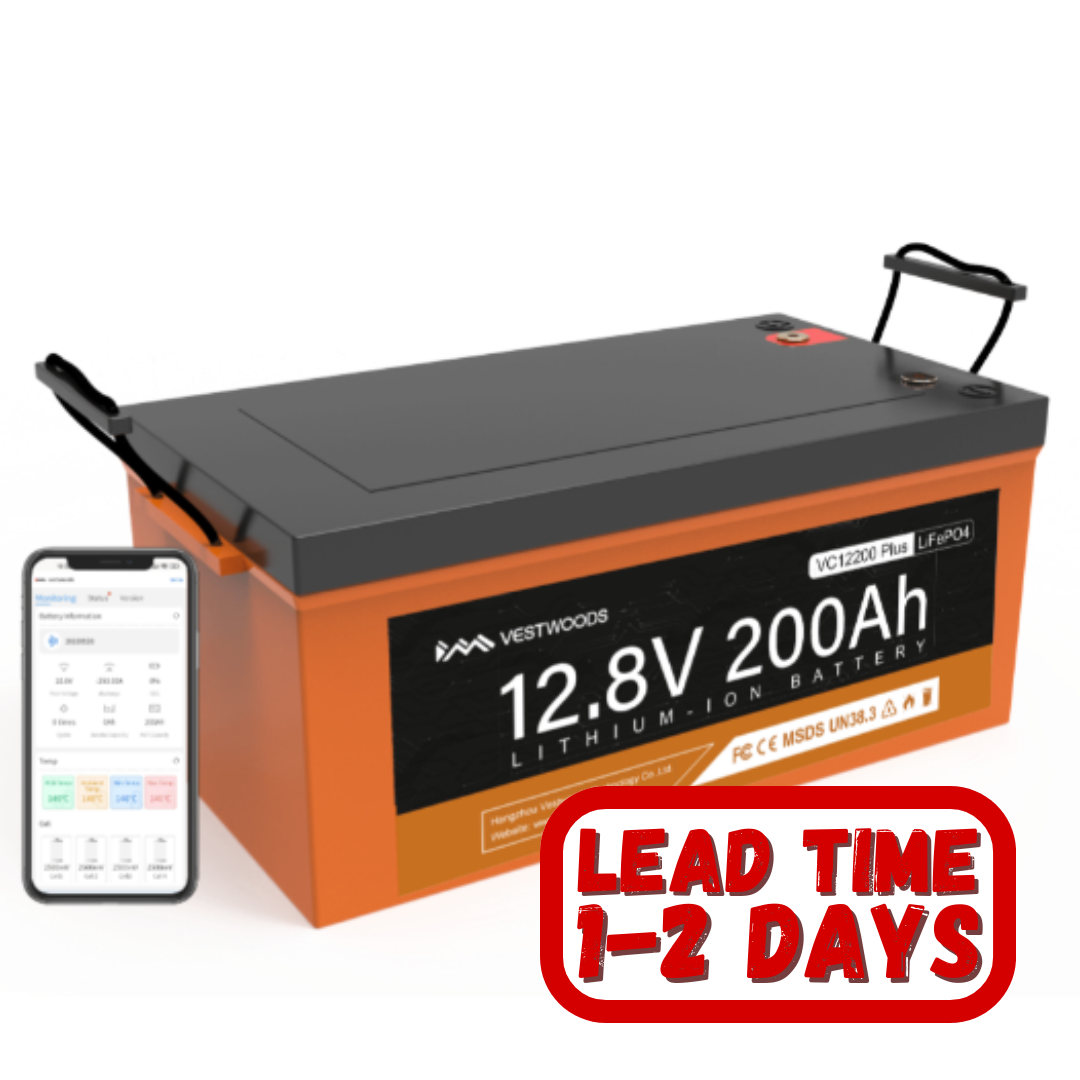

Vestwoods VC12200 12.8V 200AH LITHIUM-ION BATTERY with Bluetooth

• Safe and Reliable
• The Safest LFP battery cell
• Cell balancing to extend the lifetime of the battery (>300mA)
• Bluetooth built-in makes it easy to access battery status (Pow Bank)
• Supports series and parallel use (maximum 4)

Electrical

Nominal Voltage/V 12.8

Nominal Capacity/Ah 200

Rated Energy/Wh 2560

BMS Function Overcharge, overdischarge, overcurrent and temperature protection

Recommended Charge Voltage/V 14.4 - 14.6

Discharge Cut-off Voltage/V 10.8

Standard Charge Current/A 50

Max. Charge Current/A 100

Continuous Discharge Current/A 100

Peak Discharge Current/A@5S 400

Voltage Configurations 12,24,36 or 48V

Maximum Configuration Increase capacity in series or increasing voltage parallel

Maximum Time Between Charges 3 months

Monitoring Bluetooth

Mechanical

Dimension(L*W*H)/ mm 520*270*220

Weight/kg Approx.31.5

Terminal M8

Casing material ABS

Environment

Working Temperature Range/℃ Charge : 0~55 Discharge: -20~60

Humidity Range/RH ＜95%

Storage temperature/℃ 15~35

IP protection level IP65
