If your Trolley Inverter / Intellipower is no longer working, it is often due to the unit needing battery replacement. Batteries are consumables and need to be replaced once depleted.

We will clean the unit out, replace lugs if needed, replace the batteries and quote on any other necessary repairs to the unit.

Should the unit not need battery replacement when you bring it in, we will let you know this and quote on what does need to be done to restore the unit to perfect working condition.

Battery replacement price includes the credit for the scrap (old) batteries inside the unit which we will retain. Should you wish to keep these old batteries there will be an addittional charge of @265+vat per battery.

If you book for your battery replacement in advance, we can do this whilst you wait. It takes about 30mins.

If you are unable to bring the unit to our workshop in Kyalami, we would gladly come to you for an additional call out fee. NB: When Load Shedding causes demand to increase we have to decline call outs due to a lack of man power. Call our offices on 011-468-1619 to discuss this option.

.

BATTERY SELECTION: You have chosen a Lithium Ion battery which comes with a 3 year conditional manufacturers carry in warranty held by the battery manufacturer & supplier.

Vestwoods VC12100 12.8V 100AH LITHIUM-ION BATTERY

• Safe and Reliable
• The Safest LFP battery cell
• Cell balancing to extend the lifetime of the battery (>300mA)
• Bluetooth built-in makes it easy to access battery status (Pow Bank)
• Supports series and parallel use (maximum 4)

Electrical

Nominal Voltage/V 12.8

Nominal Capacity/Ah 100

Rated Energy/Wh 1280

BMS Function Overcharge, overdischarge, overcurrent and temperature protection

Recommended Charge Voltage/V 14.4 - 14.6

Discharge Cut-off Voltage/V 10.8

Standard Charge Current/A 50

Max. Charge Current/A 100

Continuous Discharge Current/A 100

Peak Discharge Current/A@5S 300

Voltage Configurations 12,24,36 or 48V

Maximum Configuration Increase capacity in series or increasing voltage parallel

Maximum Time Between Charges 3 months

Monitoring Bluetooth

Mechanical

Dimension(L*W*H)/ mm 307*169*213

Weight/kg Approx.11.5

Terminal M8

Casing material ABS

Environment

Working Temperature Range/℃ Charge : 0~55 Discharge: -20~60

Humidity Range/RH ＜95%

Storage temperature/℃ 15~35

IP protection level IP65

Download battery spec sheet here: RTVC12100

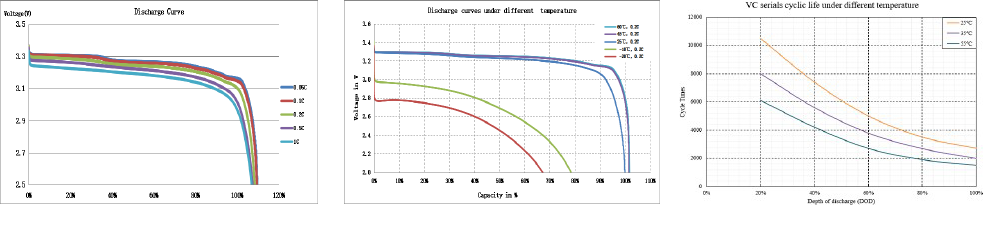

For estimated run time total your watts and refer to the run time chart here
