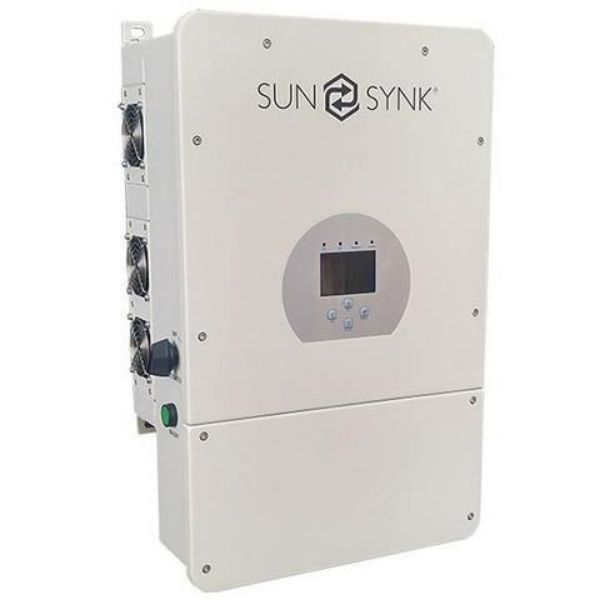

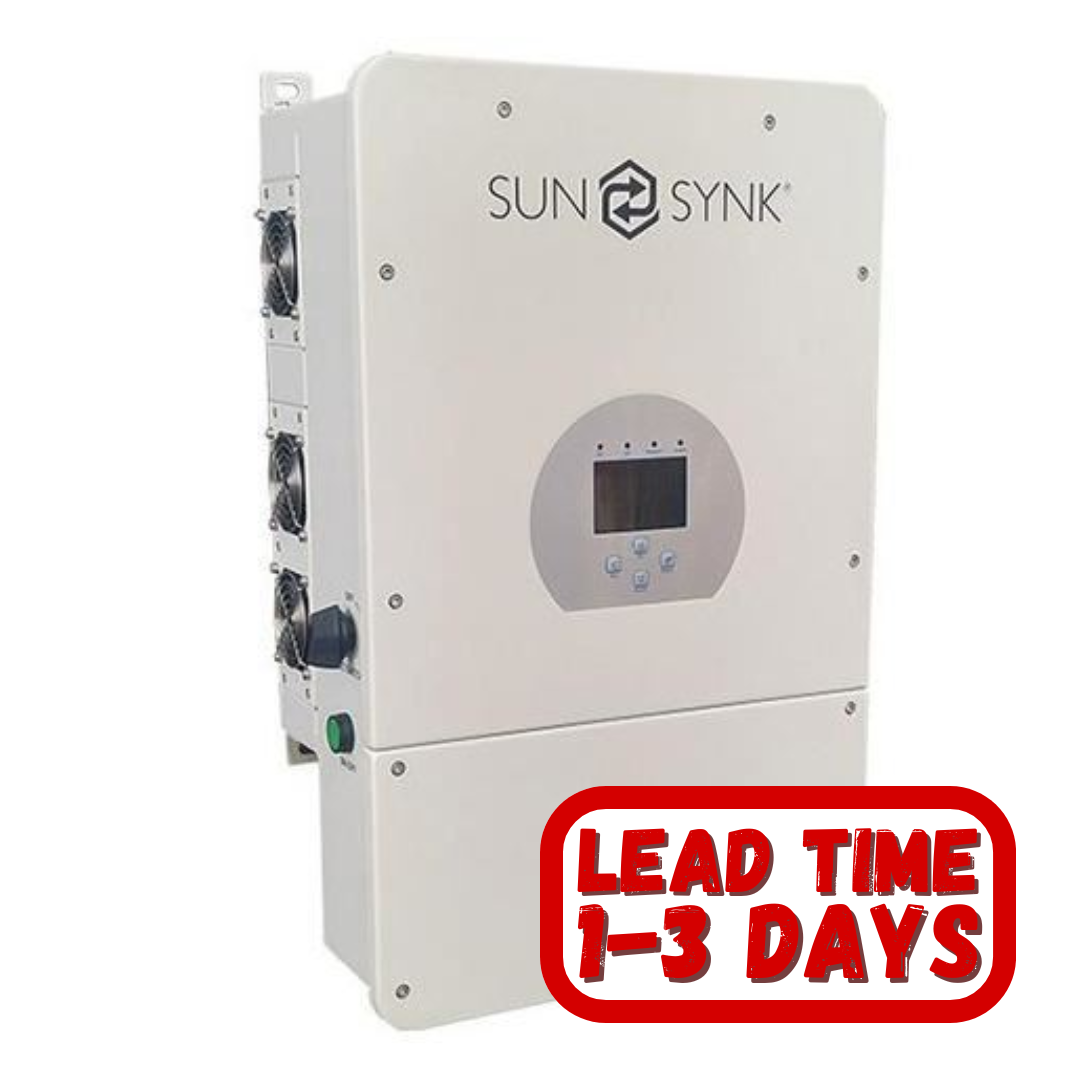

Sunsynk 5kW, 48Vdc Single Phase Hybrid Inverter with Wifi included

Sunsynk 5kW, 48Vdc Single Phase Hybrid Inverter with Wifi included
SKU: SSSUN-5.0
R23 792,97
R20 899,05
Share

DESCRIPTION

  • SUNSYNK 5kW Hybrid Parity Inverter (1 Phase) – SUNSYNK-5K-SG02LP1
  • Model SUNSYNK-5K-SG02LP1
  • The Synsynk Hybrid Parity Inverter is a Highly Efficient Power Management Tool.
  • Manages Power Flow from multiple sources such as Solar, Main Electrical Grids & Generator, then effectively storing & releasing electric power as the utilities require.
  • Easy & Simple to Understand Display.
  • Wi-Fi & GSM monitoring supported.
  • Equipped with Visual power flow screen.
  • Built-In 2 strings of MPP trackers.
  • Smart settable 3-stage MPPT charging – optimized battery performance.
  • Auxiliary load function.
  • Parallel/multi invert function grid-tied & off-grid.
  • 220V Single Phase, Pure Sinewave Inverter.
  • Grid Type: Split Phase, 2/3 Phase, Single Phase
  • Protection Degree: IP65
  • Noise Level: <30dB
  • Maximum Charge & Discharge Current: 120A
  • Battery Charging Strategy: Self-Adaptation to BMS
  • Maximum DC Input Power: 6500W
  • MPPT Range: 125-425V
  • 2 x MPPT
  • Start-up Voltage: 150V
  • AC Output & UPS Power: 5000W
  • Maximum AC Power: 5500W
  • AC Output Rated Current: 20.8A
  • Maximum AC Output Current: 24A
  • Maximum Efficiency: 97.60%
  • MPPT Efficiency: 96.50%
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
  • Battery Voltage Range: 40-60V
  • Communication with BMS: CAN/RS485
  • Fan Cooling
  • Operation Temperature: -25°C to 60°C
  • Installation Type: Wall Mounted.
  • Weight: 32Kg
  • Dimensions (L x W x H): 670 x 420 x 233 mm
  • Refer To Brochure For Detailed Product Specifications.
  • 5 Year Limited Product Warranty. T & C’s Apply
  • Recommended Solar Panel Configuration:
    • Min 3 Panels – Max 14 Panels (Panel Size: 180W to 480W Panels) (7 Panels per MPPT)
    • Based off Seraphim, Raystech, JINKO & GSun Solar Panel Specifications

DESCRIPTION

  • SUNSYNK 5kW Hybrid Parity Inverter (1 Phase) – SUNSYNK-5K-SG02LP1
  • Model SUNSYNK-5K-SG02LP1
  • The Synsynk Hybrid Parity Inverter is a Highly Efficient Power Management Tool.
  • Manages Power Flow from multiple sources such as Solar, Main Electrical Grids & Generator, then effectively storing & releasing electric power as the utilities require.
  • Easy & Simple to Understand Display.
  • Wi-Fi & GSM monitoring supported.
  • Equipped with Visual power flow screen.
  • Built-In 2 strings of MPP trackers.
  • Smart settable 3-stage MPPT charging – optimized battery performance.
  • Auxiliary load function.
  • Parallel/multi invert function grid-tied & off-grid.
  • 220V Single Phase, Pure Sinewave Inverter.
  • Grid Type: Split Phase, 2/3 Phase, Single Phase
  • Protection Degree: IP65
  • Noise Level: <30dB
  • Maximum Charge & Discharge Current: 120A
  • Battery Charging Strategy: Self-Adaptation to BMS
  • Maximum DC Input Power: 6500W
  • MPPT Range: 125-425V
  • 2 x MPPT
  • Start-up Voltage: 150V
  • AC Output & UPS Power: 5000W
  • Maximum AC Power: 5500W
  • AC Output Rated Current: 20.8A
  • Maximum AC Output Current: 24A
  • Maximum Efficiency: 97.60%
  • MPPT Efficiency: 96.50%
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
  • Battery Voltage Range: 40-60V
  • Communication with BMS: CAN/RS485
  • Fan Cooling
  • Operation Temperature: -25°C to 60°C
  • Installation Type: Wall Mounted.
  • Weight: 32Kg
  • Dimensions (L x W x H): 670 x 420 x 233 mm
  • Refer To Brochure For Detailed Product Specifications.
  • 5 Year Limited Product Warranty. T & C’s Apply
  • Recommended Solar Panel Configuration:
    • Min 3 Panels – Max 14 Panels (Panel Size: 180W to 480W Panels) (7 Panels per MPPT)
    • Based off Seraphim, Raystech, JINKO & GSun Solar Panel Specifications
