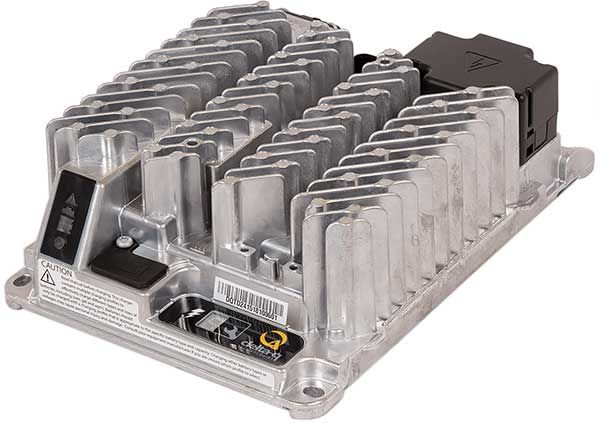

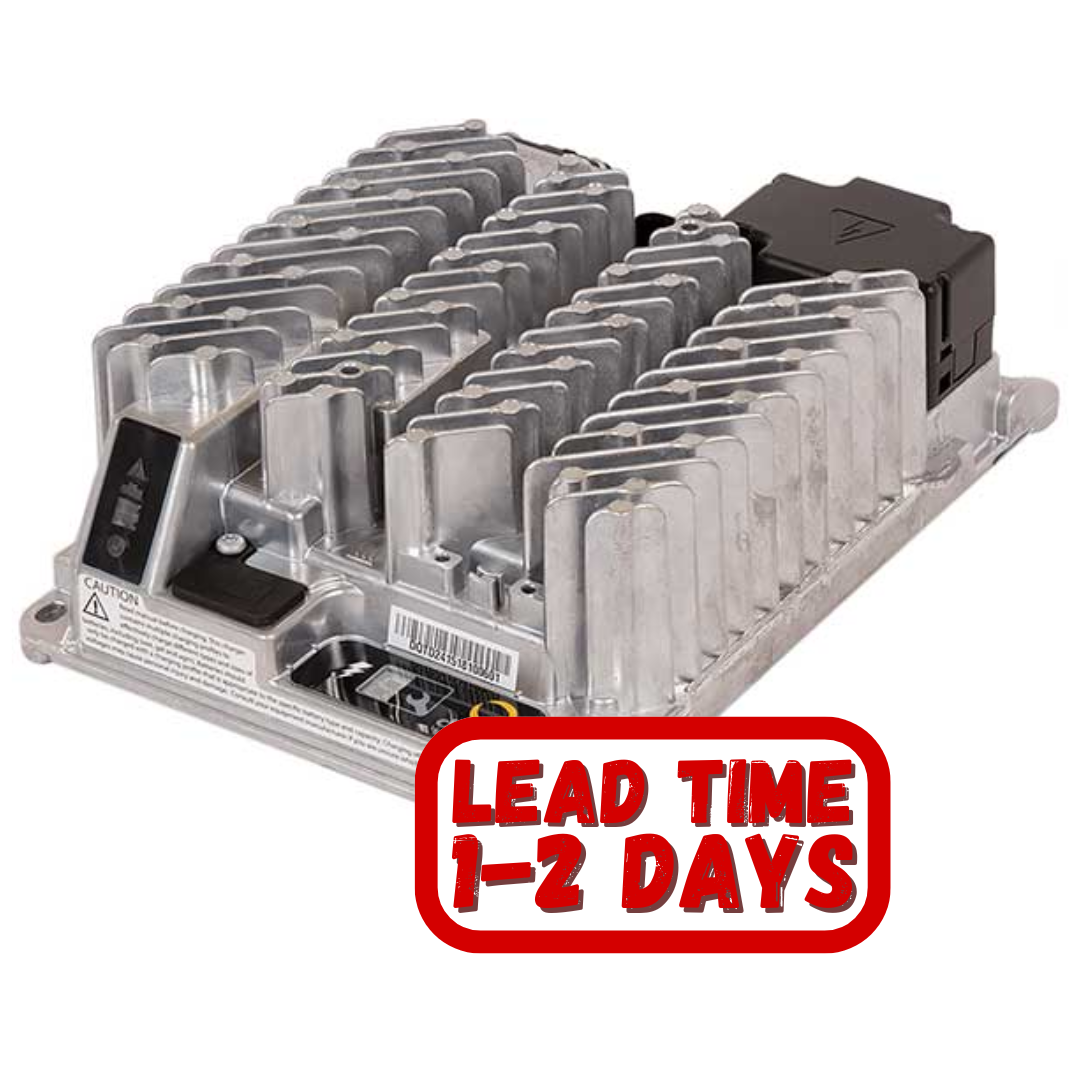

Delta-Q IC650 24v 27amp Golf Cart Battery Charger

Delta-Q IC650 24v 27amp Golf Cart Battery Charger
SKU: ETIC65024V27A Delta-Q
  • This item is brought in from the warehouse on order. Lead time is 1-3 days.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    R7 522,38
    decrease increase

    DC Output : 24 VDC
     Maximum DC output voltage : 36 V
     Maximum DC output current : 27.1 A
     Maximum DC output power : 650 W
     Deep discharge recovery (minimum voltage) : 1.2 V
     Maximum C3 interlock signal current : 1.5 A (15 A with external interlock device, 24V model only)
     Battery type : Lead acid (Wet / AGM / GEL), lithium
     Reverse polarity : Electronic protection with auto-reset
     Short circuit : Electronic current limit


     AC Input
     AC input voltage range : 85-270 VAC
     Nominal AC input voltage : 100-240 VAC
     Nominal AC input frequency : 50 / 60 Hz
     Maximum AC input current : 7.5 A
     Nominal AC input current : 7.3 A @ 100
     3.1 A @ 230 VAC
     Power factor : >0.99 @ 120 VAC

    Mechanical
     Dimensions : 25.2 x 18.6 x 8 cm (9.9 x 7.3 x 3.1”)
     Weight : < 3 kg (< 6.5 lbs)
     AC input connector : IEC320 / C14 (requires country-specific cord)
     DC output connector : M6 threaded fasteners for ring terminals
     Service port : Sealed (IP66) USB 2.0 Host Port (Type A) with dust cover
     Mounting holes : Allows for safe installation on shelf, wall or bulkhead
     Cooling : Normal operation in any orientation with passive cooling

    Download product spec sheet here: ETIC65024V27A Delta-Q

    DC Output : 24 VDC
     Maximum DC output voltage : 36 V
     Maximum DC output current : 27.1 A
     Maximum DC output power : 650 W
     Deep discharge recovery (minimum voltage) : 1.2 V
     Maximum C3 interlock signal current : 1.5 A (15 A with external interlock device, 24V model only)
     Battery type : Lead acid (Wet / AGM / GEL), lithium
     Reverse polarity : Electronic protection with auto-reset
     Short circuit : Electronic current limit


     AC Input
     AC input voltage range : 85-270 VAC
     Nominal AC input voltage : 100-240 VAC
     Nominal AC input frequency : 50 / 60 Hz
     Maximum AC input current : 7.5 A
     Nominal AC input current : 7.3 A @ 100
     3.1 A @ 230 VAC
     Power factor : >0.99 @ 120 VAC

    Mechanical
     Dimensions : 25.2 x 18.6 x 8 cm (9.9 x 7.3 x 3.1”)
     Weight : < 3 kg (< 6.5 lbs)
     AC input connector : IEC320 / C14 (requires country-specific cord)
     DC output connector : M6 threaded fasteners for ring terminals
     Service port : Sealed (IP66) USB 2.0 Host Port (Type A) with dust cover
     Mounting holes : Allows for safe installation on shelf, wall or bulkhead
     Cooling : Normal operation in any orientation with passive cooling

    Download product spec sheet here: ETIC65024V27A Delta-Q
