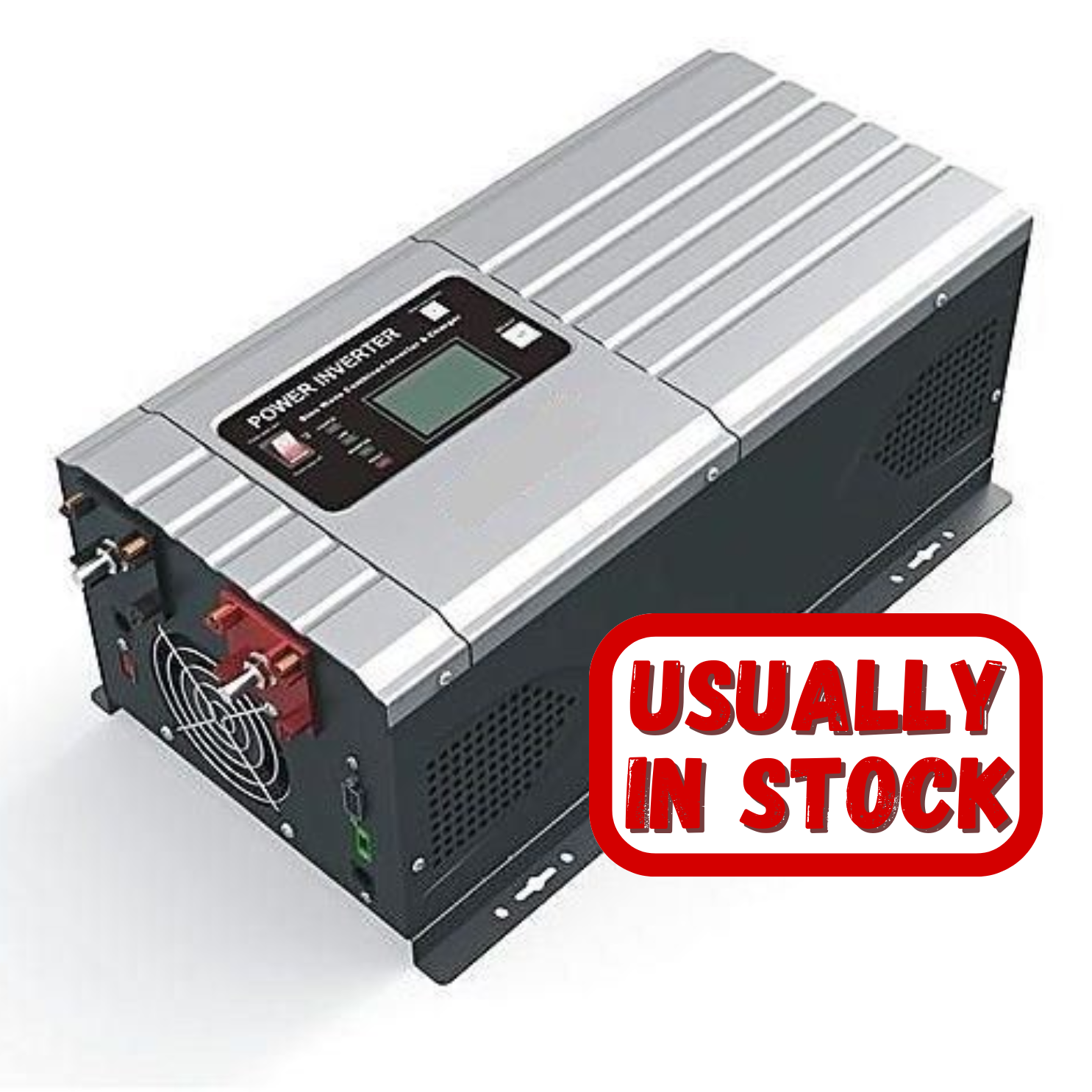

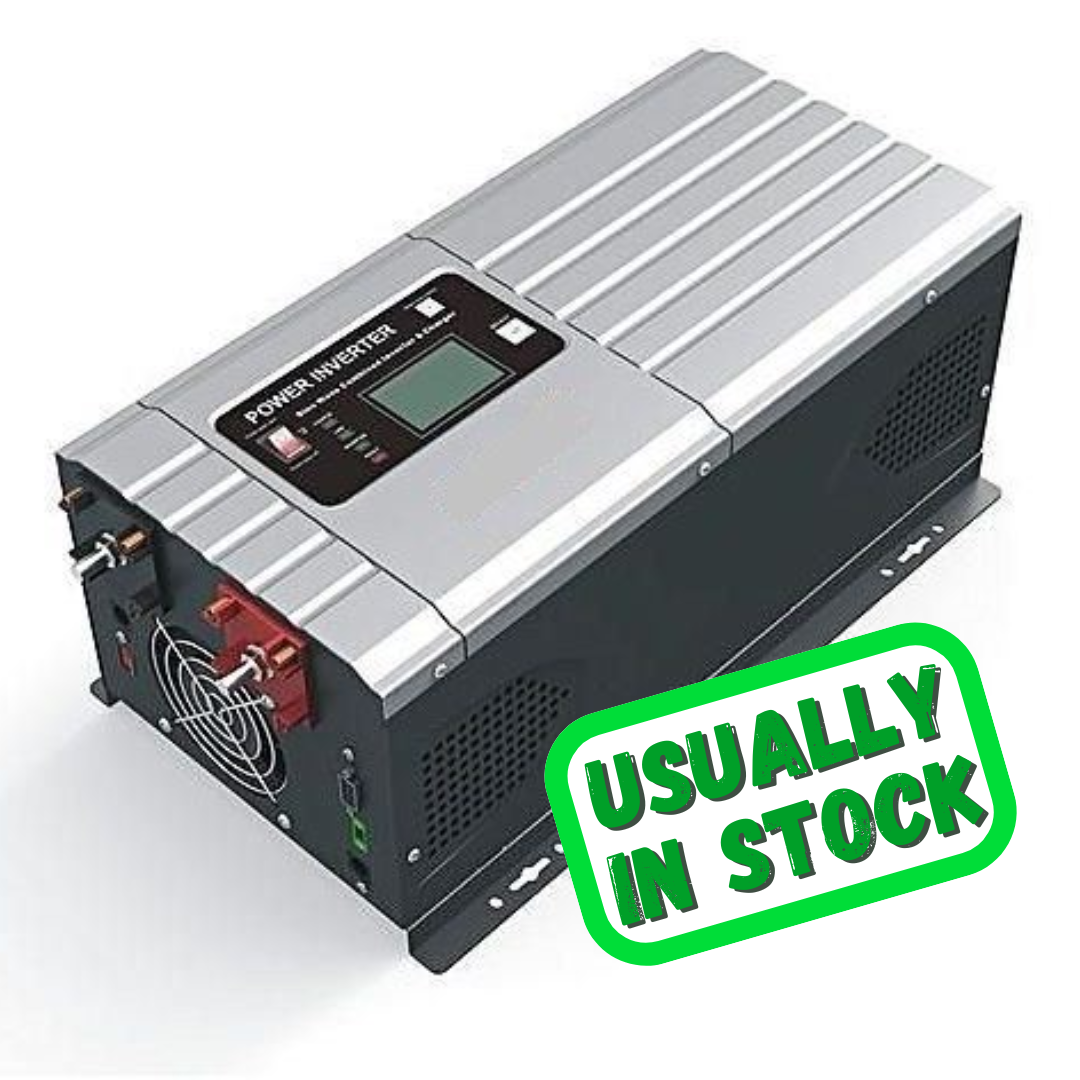

IR 6000w / 6kVA 48vdc Pure Sine Inverter Charger
Low Frequency Pure Sine Inverter
Basic Specs
- 6000w/6000va
- 48vdc
- 10ms typical change over
- 50A multi-stage charger
- 760x340x320mm (L x W x H)
- 49Kgs
- See Full Specs
Features
- Soft start capability for starting heavy loads
- Durable construction for long life under extreme environmental conditions
- Low idle current (less than 1 watt) conserves energy when no loads are present
- Built-in starting control circuits for two- and three- wire generator starting systems
- Simplifies controls with a snap-on cover that protects settings from being accidentally changed
- Better thermal performance allows output power to 50ºC (122ºF) without de-rating
- High surge capacity starts more difficult loads and handles overload conditions reliably
- Durable powder coated, corrosion resistant steel chassis
- New digital display shows kilowatts (kW) when inverting amps (A) when charging, plus incorporates a robust ON/OFF switch and status indicators
- 70-amp automatic three stage battery charger (bulk, absorption, and float) and battery equalization with remote temperature sensor for increased performance
- New power factor corrected (PFC) charging, combined with a more sophisticated multi-stage battery charging algorithm, reduces electricity draw and generator run-time
